SINGLE-WALL | POLYETHYLENE PIPE
TruFlo

TruFlo is a single-wall, recycled pipe designed for less demanding projects like your next recreational facility or residential job. Plus, it’s environmentally conscious without sacrificing quality.

A Truly Simple Solution
0034outdoorProduct4
Detail Arrow

SIZES

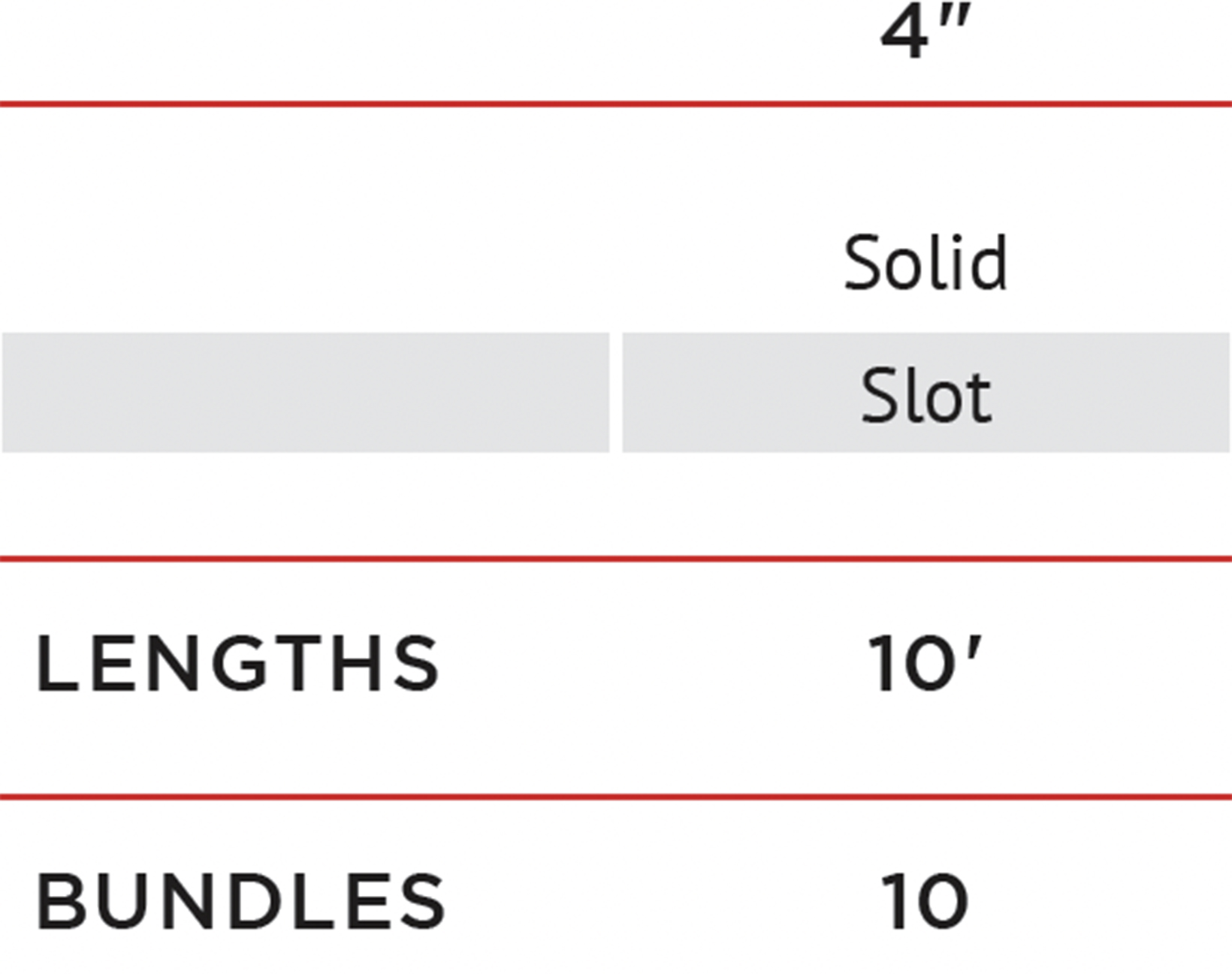

STICKS

4″

Solid

Slot

LENGTHS

10′

BUNDLES

10

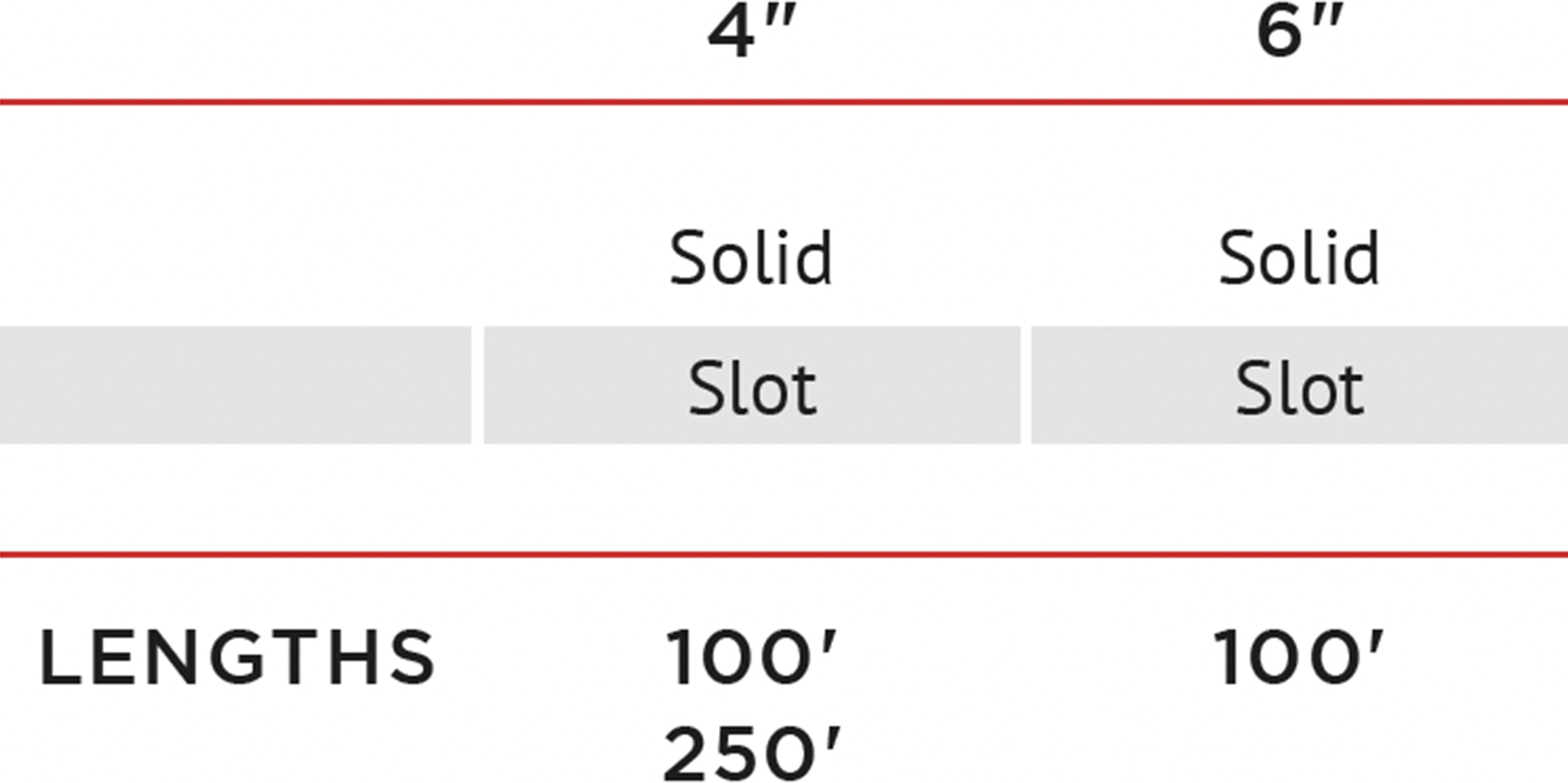

COILS

4″

6″

Solid

Solid

Slot

Slot

LENGTHS

100′

250′

100′

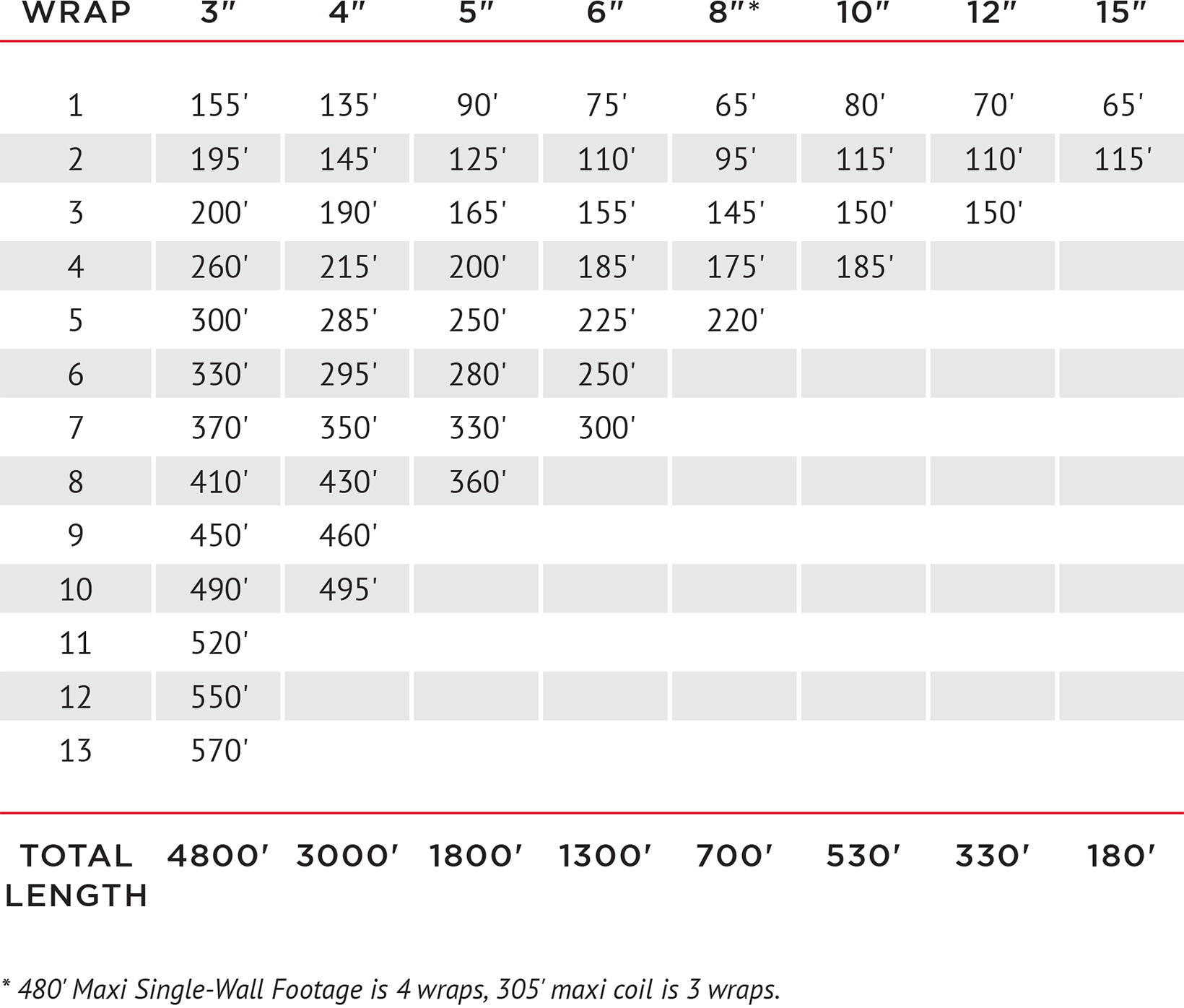

SINGLE-WALL SELECTION CHART

WRAP

3″

4″

5″

6″

8″*

10″

12″

15″

1

155′

135′

90′

75′

65′

80′

70′

65′

2

195′

145′

125′

110′

95′

115′

110′

115′

3

200′

190′

165′

155′

145′

150′

150′

4

260′

215′

200′

185′

175′

185′

5

300′

285′

250′

225′

220′

6

330′

295′

280′

250′

7

370′

350′

330′

300′

8

410′

430′

360′

9

450′

460′

10

490′

495′

11

520′

12

550′

13

570′

TOTAL LENGTH

4800′

3000′

1800′

1300′

700′

530′

330′

180′

*480′ Maxi Single-Wall Footage is 4 wraps, 305′ maxi coil is 3 wraps.

Dimensions & Specifications:

  • 3″–8″ Maxi Single-Wall Footages are wound up on a 15″ core of corrugated tubing: core must be returned to Fratco
  • 10″, 12″ and 15″ Maxi Single-Wall Footages have a center hole of 24″
  • All Maxi-Coils measure approximately 7.5′ wide
  • 3″, 4″, 5″ and 8″ x 700′ Maxi Single-Wall Footages measure approximately 8.5′ in diameter
  • 6″ Maxi Single-Wall Footages measure approximately 9′ in diameter
  • 10″ and 12″ Maxi Single-Wall Footages measure approximately 10′ in diameter
  • Approximate maximum weight of Maxi Single-Wall Footages is 1,000 lbs. depending on the size



Notes:

Wraps are numbered from the inside out.

SPECIFICATIONS

DesignLifeIcon-02

100-YEAR DESIGN LIFE

Built to weather the test of time and the elements

AdobeStock_437900857 [Converted]-07

LIGHTWEIGHT DESIGN

Engineered with lightweight materials that are easy to install and transport

InstallIcon-05

SEAMLESS INSTALLS

Ensures seamless installation with a variety of joint and coupler options
